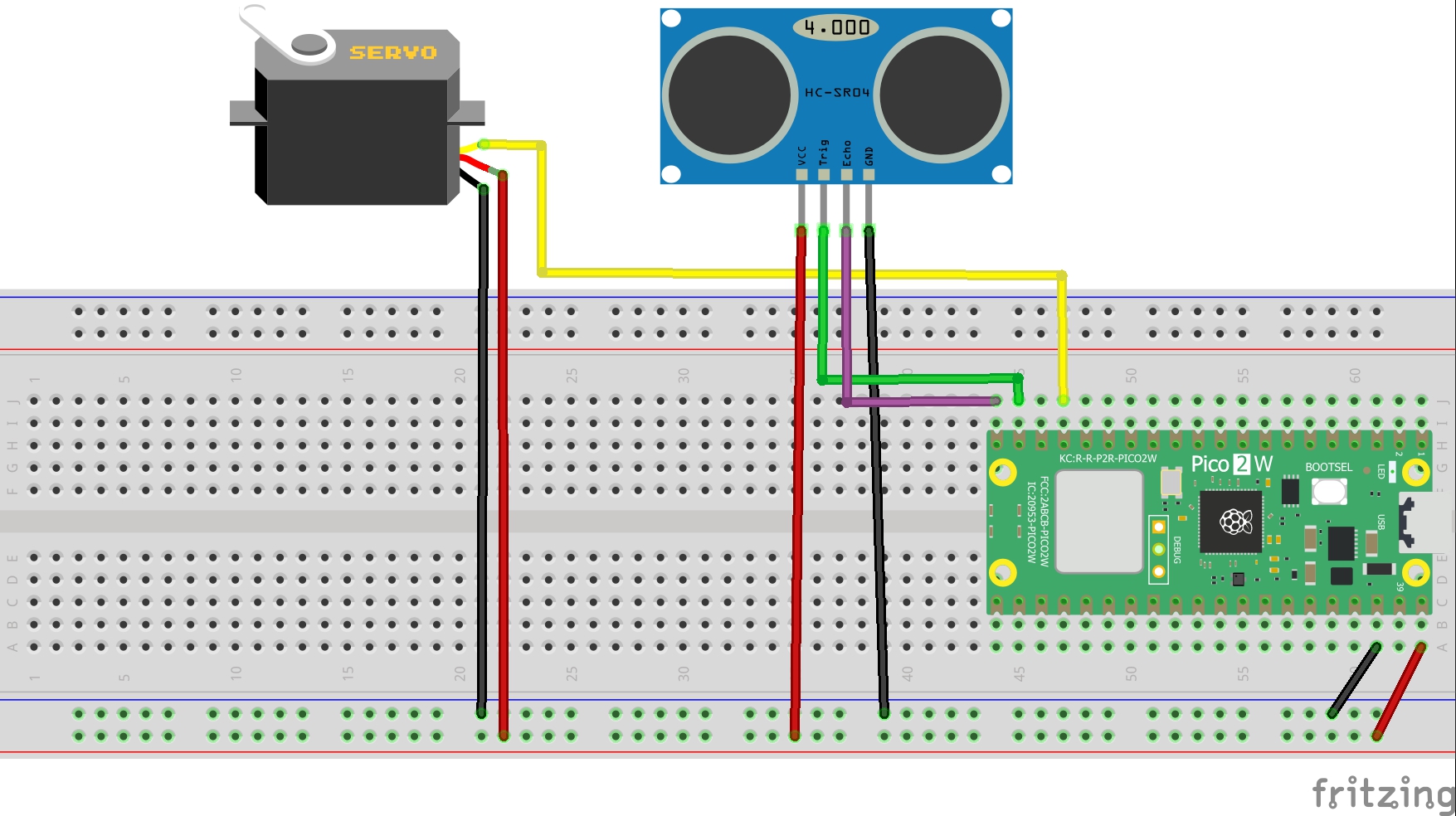

Tutorial: Building a radar system using a Raspberry Pi Pico board.

This script visualizes a radar sweep: shows location, angle, and distance of objects.

Works with a Raspberry Pi Pico (or can run in demo mode without serial).

"""

import pygame

import serial

import serial.tools.list_ports

import math

import sys

import re

from pygame.locals import *

# Initialize PyGame

pygame.init()

# Window dimensions

WIDTH = 1800

HEIGHT = 1000

screen = pygame.display.set_mode((WIDTH, HEIGHT))

pygame.display.set_caption("Voltaat RPi Pico Radar - Python Visualization")

# Colors

BLACK = (0, 0, 0)

GREEN = (98, 245, 31)

LIGHT_GREEN = (30, 250, 60)

RED = (255, 10, 10)

BRIGHT_RED = (255, 50, 50)  # For history points

ORANGE = (255, 165, 0)      # For closer targets

DARK_GREEN = (0, 100, 0)

WHITE = (255, 255, 255)

# Variables

angle = ""

distance = ""

data = ""

iAngle = 0

iDistance = 0

scanStatus = "Scanning..."

scan_history = []  # To store scan history

max_history = 200  # Increased a bit for larger window

# Fonts

pygame.font.init()

title_font = pygame.font.SysFont('Arial', 40, bold=True)

info_font = pygame.font.SysFont('Arial', 30)

small_font = pygame.font.SysFont('Arial', 25)

angle_font = pygame.font.SysFont('Arial', 20)

# Radar center (ensure ints)

radar_center_x = WIDTH // 2

radar_center_y = int(HEIGHT - HEIGHT * 0.074)

# ===== CONFIGURE SERIAL PORT HERE =====

AUTO_DETECT = True

# Option 3: Use port pattern matching

PORT_PATTERNS = [

   "COM8",  # Specific COM port for Windows

   "COM3", "COM4", "COM5", "COM6", "COM7", "COM9", "COM10",

   "/dev/ttyACM",

   "/dev/ttyUSB",

   "/dev/cu.usbmodem",

   "/dev/cu.usbserial",

]

def setup_serial():

   print("=" * 50)

   print("Serial Port Configuration")

   print("=" * 50)

   ports = list(serial.tools.list_ports.comports())

   if not ports:

       print("ERROR: No serial ports found!")

       print("Please connect your Raspberry Pi Pico and try again.")

       return None

   print("Available Serial Ports:")

   print("-" * 40)

   for i, port in enumerate(ports):

       print(f"{i}: {port.device} - {port.description}")

   print("-" * 40)

   # Strategy 1: Manual port specified (if set)

   if 'MANUAL_PORT' in globals() and MANUAL_PORT:

       print(f"Trying manually specified port: {MANUAL_PORT}")

       return try_connect_port(MANUAL_PORT)

   # Strategy 2: Pattern matching

   print("\nTrying pattern matching...")

   for pattern in PORT_PATTERNS:

       for port in ports:

           if pattern in port.device:

               print(f"Found port matching pattern '{pattern}': {port.device}")

               ser = try_connect_port(port.device)

               if ser:

                   return ser

   # Strategy 3: Auto-detect Pico (looking for Pico/raspberry keywords)

   if AUTO_DETECT:

       print("\nAuto-detecting Raspberry Pi Pico...")

       for port in ports:

           desc_lower = (port.description or "").lower()

           if ('pico' in desc_lower or

               'raspberry' in desc_lower or

               'serial' in desc_lower or

               'usb' in desc_lower):

               print(f"Potential Pico detected: {port.device} - {port.description}")

               ser = try_connect_port(port.device)

               if ser:

                   return ser

   # Strategy 4: Try specific index (COM8)

   print("\nTrying specific port index (COM8)...")

   try:

       for port in ports:

           if "COM8" in port.device:

               print(f"Found COM8: {port.device}")

               ser = try_connect_port(port.device)

               if ser:

                   return ser

       if len(ports) > 8:

           port_name = ports[8].device

           print(f"Trying port at index 8: {port_name}")

           return try_connect_port(port_name)

   except Exception as e:

       print(f"Error with specific index: {e}")

   # Strategy 5: Try all ports

   print("\nTrying all available ports...")

   for port in ports:

       print(f"Trying port: {port.device}")

       ser = try_connect_port(port.device)

       if ser:

           return ser

   print("\nERROR: Could not connect to any serial port!")

   print("\nTroubleshooting tips:")

   print("1. Make sure Raspberry Pi Pico is connected via USB")

   print("2. Check if Pico has MicroPython installed and running")

   print("3. Try unplugging and re-plugging the USB cable")

   print("4. Check Device Manager (Windows) or ls /dev/tty* (Linux/Mac)")

   print("5. Modify the PORT_PATTERNS list in the code with your port")

   return None

def try_connect_port(port_name):

   """Try to connect to a specific port"""

   try:

       print(f"Connecting to {port_name}...")

       ser = serial.Serial(

           port=port_name,

           baudrate=9600,

           bytesize=serial.EIGHTBITS,

           parity=serial.PARITY_NONE,

           stopbits=serial.STOPBITS_ONE,

           timeout=1,

           write_timeout=1

       )

       if ser.is_open:

           print(f"✓ Successfully connected to {port_name}")

           print(f"Port settings: {ser.name}, {ser.baudrate} baud")

           return ser

   except serial.SerialException as e:

       print(f"✗ Failed to connect to {port_name}: {e}")

   except Exception as e:

       print(f"✗ Error with {port_name}: {e}")

   return None

# Draw radar circle and static lines

def draw_radar():

   # Draw arcs (partial circles)

   arc_radius = [(WIDTH - WIDTH * 0.0625) // 2,

                 (WIDTH - WIDTH * 0.27) // 2,

                 (WIDTH - WIDTH * 0.479) // 2,

                 (WIDTH - WIDTH * 0.687) // 2]

   for radius in arc_radius:

       pygame.draw.arc(screen, GREEN,

                      (radar_center_x - radius, radar_center_y - radius,

                       radius * 2, radius * 2),

                      math.pi, 2 * math.pi, 2)

   # Draw angle radial lines

   line_length = WIDTH // 2

   angles = [0, 30, 60, 90, 120, 150, 180]

   for angle_deg in angles:

       angle_rad = math.radians(angle_deg)

       end_x = radar_center_x + line_length * math.cos(angle_rad)

       end_y = radar_center_y - line_length * math.sin(angle_rad)

       pygame.draw.line(screen, GREEN, (radar_center_x, radar_center_y),

                       (end_x, end_y), 2)

# Draw sweeping translucent sector (visual sweep)

def draw_sweep():

   sweep_width_deg = 20  # width of sweep in degrees

   # we clamp start and end between 0 and 180 (semi-circle)

   start_deg = max(0, int(iAngle - sweep_width_deg))

   end_deg = min(180, int(iAngle))

   line_length = (HEIGHT - HEIGHT * 0.12) * 0.8

   points = [(radar_center_x, radar_center_y)]

   for deg in range(start_deg, end_deg + 1):

       rad = math.radians(deg)

       x = radar_center_x + line_length * math.cos(rad)

       y = radar_center_y - line_length * math.sin(rad)

       points.append((int(x), int(y)))

   sweep_surf = pygame.Surface((WIDTH, HEIGHT), pygame.SRCALPHA)

   sweep_color = (30, 250, 60, 40)  # RGBA with alpha

   if len(points) >= 3:

       pygame.draw.polygon(sweep_surf, sweep_color, points)

       screen.blit(sweep_surf, (0, 0))

# Draw scanning line (active beam)

def draw_line():

   line_length = (HEIGHT - HEIGHT * 0.12) * 0.8

   angle_rad = math.radians(iAngle)

   end_x = radar_center_x + line_length * math.cos(angle_rad)

   end_y = radar_center_y - line_length * math.sin(angle_rad)

   pygame.draw.line(screen, LIGHT_GREEN,

                    (radar_center_x, radar_center_y),

                    (end_x, end_y), 9)

# Draw detected objects

def draw_object():

   if iDistance < 40 and iDistance > 0:

       # Convert distance from cm to pixels

       pixs_distance = iDistance * ((HEIGHT - HEIGHT * 0.1666) * 0.025)

       angle_rad = math.radians(iAngle)

       # Calculate object position

       obj_x = radar_center_x + pixs_distance * math.cos(angle_rad)

       obj_y = radar_center_y - pixs_distance * math.sin(angle_rad)

       # Determine point size and color based on distance

       if iDistance <= 10:  # Very close - bigger and brighter

           point_size = 14

           point_color = ORANGE

       elif iDistance <= 20:  # Close - medium size

           point_size = 12

           point_color = RED

       else:  # Far - smaller

           point_size = 10

           point_color = RED

       # Draw object as a point WITHOUT the red line

       pygame.draw.circle(screen, point_color, (int(obj_x), int(obj_y)), point_size)

       # Draw a small white center for better visibility

       pygame.draw.circle(screen, WHITE, (int(obj_x), int(obj_y)), point_size // 3)

       # Store point in history

       scan_history.append((obj_x, obj_y, iAngle, iDistance, point_color))

       if len(scan_history) > max_history:

           scan_history.pop(0)

   # Draw scan history (fades with time)

   for i, (x, y, angle_val, dist, color) in enumerate(scan_history):

       fade_factor = 1.0 - (i / len(scan_history) * 0.7) if len(scan_history) > 0 else 1.0

       if color == RED:

           faded_color = (

               int(255 * fade_factor),

               int(50 * fade_factor),

               int(50 * fade_factor)

           )

       elif color == ORANGE:

           faded_color = (

               int(255 * fade_factor),

               int(165 * fade_factor * 0.8),

               0

           )

       else:

           faded_color = (

               int(color[0] * fade_factor),

               int(color[1] * fade_factor),

               int(color[2] * fade_factor)

           )

       if dist < 40:

           point_size = max(2, int(6 * (1.0 - i/len(scan_history) * 0.5)))

           pygame.draw.circle(screen, faded_color, (int(x), int(y)), point_size)

# Draw text and information

def draw_text():

   global scanStatus

   # Bottom information bar

   info_bar_height = HEIGHT * 0.08

   info_bar_rect = pygame.Rect(0, HEIGHT - info_bar_height, WIDTH, info_bar_height)

   pygame.draw.rect(screen, BLACK, info_bar_rect)

   # Distance labels

   distance_labels = ["10 cm", "20 cm", "30 cm", "40 cm"]

   distance_positions = [WIDTH - WIDTH * 0.3854,

                        WIDTH - WIDTH * 0.281,

                        WIDTH - WIDTH * 0.177,

                        WIDTH - WIDTH * 0.0729]

   for label, x_pos in zip(distance_labels, distance_positions):

       text = small_font.render(label, True, GREEN)

       screen.blit(text, (x_pos, HEIGHT - HEIGHT * 0.09))

   # Title

   title_text = title_font.render("VOLTAAT RPi Pico Radar", True, GREEN)

   title_rect = title_text.get_rect(center=(WIDTH // 2, 40))

   screen.blit(title_text, title_rect)

   # Angle display

   angle_text = info_font.render(f"Angle: {iAngle}°", True, GREEN)

   angle_rect = angle_text.get_rect()

   angle_rect.topleft = (20, HEIGHT - info_bar_height + 20)

   screen.blit(angle_text, angle_rect)

   # Distance display and status

   if iDistance < 40 and iDistance > 0:

       if iDistance <= 10:

           dist_color = ORANGE

           proximity = "CLOSE"

       elif iDistance <= 20:

           dist_color = RED

           proximity = "NEAR"

       else:

           dist_color = GREEN

           proximity = "FAR"

       distance_text = info_font.render(f"Distance: {iDistance} cm [{proximity}]", True, dist_color)

       scanStatus = "Target Detected"

   else:

       distance_text = info_font.render("Distance: --- cm", True, GREEN)

       scanStatus = "No Target"

   distance_rect = distance_text.get_rect()

   distance_rect.topleft = (250, HEIGHT - info_bar_height + 20)

   screen.blit(distance_text, distance_rect)

   # Scan status

   status_text = small_font.render(f"Status: {scanStatus}", True, LIGHT_GREEN)

   status_rect = status_text.get_rect()

   status_rect.topleft = (WIDTH - 300, HEIGHT - info_bar_height + 25)

   screen.blit(status_text, status_rect)

   # Angle tick labels

   angles = [30, 60, 90, 120, 150]

   for angle_val in angles:

       angle_rad = math.radians(angle_val)

       radius = (WIDTH - WIDTH * 0.5) // 2

       x = radar_center_x + radius * math.cos(angle_rad)

       y = radar_center_y - radius * math.sin(angle_rad)

       angle_text = angle_font.render(f"{angle_val}°", True, LIGHT_GREEN)

       if angle_val <= 90:

           rotated_text = pygame.transform.rotate(angle_text, -angle_val)

       else:

           rotated_text = pygame.transform.rotate(angle_text, -(180 - angle_val))

       text_rect = rotated_text.get_rect(center=(int(x), int(y)))

       screen.blit(rotated_text, text_rect)

   # Top-left info

   info_text = small_font.render("ESC: Exit | SPACE: Reset", True, GREEN)

   info_rect = info_text.get_rect()

   info_rect.topleft = (20, 20)

   screen.blit(info_text, info_rect)

   # Targets count

   history_text = small_font.render(f"Targets: {len(scan_history)}", True, GREEN)

   history_rect = history_text.get_rect()

   history_rect.topright = (WIDTH - 20, 20)

   screen.blit(history_text, history_rect)

   # Legend bottom-left

   legend_y = HEIGHT - info_bar_height - 100

   legend_text = small_font.render("Target Proximity:", True, GREEN)

   screen.blit(legend_text, (20, legend_y))

   pygame.draw.circle(screen, ORANGE, (180, legend_y + 15), 8)

   legend_close = small_font.render("Close (<10 cm)", True, GREEN)

   screen.blit(legend_close, (200, legend_y + 10))

   pygame.draw.circle(screen, RED, (180, legend_y + 45), 6)

   legend_near = small_font.render("Near (10-20 cm)", True, GREEN)

   screen.blit(legend_near, (200, legend_y + 40))

   pygame.draw.circle(screen, (200, 0, 0), (180, legend_y + 75), 4)

   legend_far = small_font.render("Far (>20 cm)", True, GREEN)

   screen.blit(legend_far, (200, legend_y + 70))

# Re-draw the bottom horizontal line so it stays visible above the info bar

def draw_bottom_horizontal():

   line_length = WIDTH // 2

   pygame.draw.line(screen, GREEN,

                    (radar_center_x - line_length, radar_center_y),

                    (radar_center_x + line_length, radar_center_y), 2)

# Process data from serial port

def parse_serial_data(ser):

   global iAngle, iDistance

   if ser and ser.in_waiting > 0:

       try:

           data = ser.read_until(b'.').decode('utf-8', errors='ignore')

           if data and ',' in data:

               data = data.strip()

               if data.endswith('.'):

                   data = data[:-1]

               parts = data.split(',')

               if len(parts) >= 2:

                   angle_str = parts[0].strip()

                   distance_str = parts[1].strip()

                   try:

                       iAngle = int(angle_str)

                       iDistance = int(distance_str)

                       if iAngle % 15 == 0:

                           print(f"Data: Angle={iAngle}°, Distance={iDistance}cm")

                   except ValueError:

                       pass

       except Exception as e:

           print(f"Error reading data: {e}")

# Main

def main():

   global iAngle, iDistance, scan_history

   ser = setup_serial()

   if not ser:

       print("Working without serial connection...")

   clock = pygame.time.Clock()

   FPS = 60

   fade_surface = pygame.Surface((WIDTH, HEIGHT))

   fade_surface.set_alpha(4)

   running = True

   while running:

       for event in pygame.event.get():

           if event.type == QUIT:

               running = False

           elif event.type == KEYDOWN:

               if event.key == K_ESCAPE:

                   running = False

               elif event.key == K_SPACE:

                   iAngle = 0

                   iDistance = 0

                   scan_history = []

                   print("Radar reset")

       # Read serial or animate sweep if no serial

       if ser:

           parse_serial_data(ser)

       else:

           # simple demo sweep when no serial device

           iAngle = (iAngle + 1) % 181  # sweep 0..180

       # background fade effect

       screen.blit(fade_surface, (0, 0))

       fade_surface.fill(BLACK)

       # draw layers

       draw_radar()

       draw_sweep()

       draw_line()

       draw_object()

       draw_text()

       # re-draw bottom horizontal so it stays visible above info bar

       draw_bottom_horizontal()

       pygame.display.flip()

       clock.tick(FPS)

   if ser:

       ser.close()

   pygame.quit()

   sys.exit()

if __name__ == "__main__":

   main()

‍
